Minelab Vanquish 560 Pro-Pack

The Minelab Vanquish 560 Pro-Pack is a feature-packed multi-frequency metal detector designed for detectorists who want strong performance in a simple, intuitive setup. Powered by Minelab’s Multi-IQ technology, it scans across multiple frequencies at once to help deliver reliable target identification and confident performance across changing ground conditions.

The Pro-Pack includes both the V12X and V8X coils, giving you the flexibility to cover open ground efficiently or work more precisely in tighter, target-rich areas. With waterproof construction, 30 discrimination segments, five target tones, wireless audio and handgrip vibration, the Vanquish 560 Pro-Pack is a capable all-round package for land, beach and wet ground detecting.

Key Features

• Multi-IQ simultaneous multi-frequency technology
• Beach, Park and Field search modes
• 30 discrimination segments
• Target ID range from -19 to 99
• Four levels of Iron Bias control
• Five target tones
• Bluetooth LE Audio with ML60 wireless earbuds included
• Waterproof to 5 metres with IP68 rating

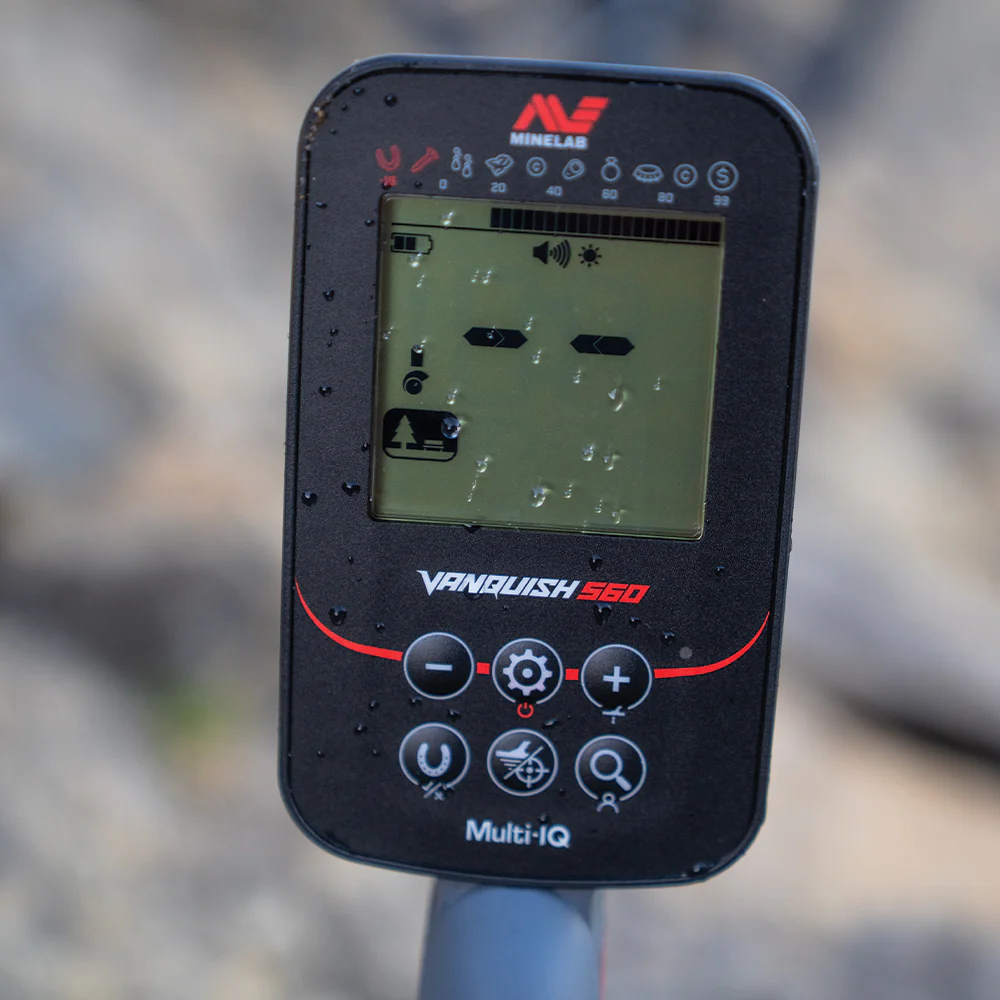

• Backlit monochrome LCD display and keypad backlight
• Built-in flashlight and vibration
• Includes V12X 12" x 9" coil and V8X 8" x 5" coil
• Internal rechargeable lithium-ion battery

Why Choose the Vanquish 560 Pro-Pack?

The Vanquish 560 Pro-Pack is ideal for detectorists who want the benefit of Minelab’s Multi-IQ technology without an overly complicated control system. It offers strong all-terrain capability, useful audio options and enough adjustment to handle a variety of sites.

The two included coils make the Pro-Pack especially versatile. Use the V12X for wider ground coverage across open areas, or switch to the V8X for tighter spaces, stubble, woodland edges and target-rich ground where precision matters.

What's Included?

• Minelab Vanquish 560 Pro-Pack metal detector
• V12X 12" x 9" Double-D elliptical coil
• V8X 8" x 5" Double-D elliptical coil
• ML60 Bluetooth LE wireless earbuds
• Internal rechargeable lithium-ion battery

Specification Sheet

Search Modes	Beach, Park, Field
Technology	Multi-IQ simultaneous multi-frequency
User Profile	Yes
Custom User Search Profile	Yes
Pinpoint Mode	Yes
Sensitivity	10 levels
Noise Cancel	Auto
Discrimination Segments	30 segments
Target ID	Ferrous -19 to 0 / Non-ferrous 1 to 99
Depth Indicator	5 levels
Iron Bias	4 levels
Target Tones	5 tones
Volume Control	10 levels
Ferrous Volume	10 levels
Wireless Audio	Bluetooth LE Audio, LC3 codec
Audio Output	Built-in loudspeaker, wired 3.5mm headphones, Bluetooth LE Audio
Included Headphones	ML60 wireless earbuds
Supplied Coils	V12X 12" x 9" Double-D elliptical coil V8X 8" x 5" Double-D elliptical coil
Length	Extended: 142cm / 56" Collapsed: 79cm / 31"
Weight	1.26kg / 2.6lbs
Display	Monochrome LCD
Display Backlight	Yes
Keypad Backlight	Yes
Flashlight	Yes
Vibration	Yes
Battery	Internal rechargeable lithium-ion battery
Waterproof Rating	IP68, waterproof to 5m / 16ft
Operating Temperature	-10°C to +40°C / +14°F to +104°F
Storage Temperature	-20°C to +70°C / -4°F to +158°F
Key Technologies	Multi-IQ, Bluetooth LE Audio
Warranty	3 years on control box and coil

FAQs

Is the Minelab Vanquish 560 Pro-Pack waterproof?
Yes, it is waterproof to 5 metres with an IP68 rating.

What coils are included with the Vanquish 560 Pro-Pack?
The Pro-Pack includes the V12X 12" x 9" Double-D elliptical coil and the V8X 8" x 5" Double-D elliptical coil.

Are wireless headphones included?
Yes, the Vanquish 560 Pro-Pack includes ML60 Bluetooth LE wireless earbuds.

Is the Vanquish 560 Pro-Pack suitable for beach detecting?
Yes, it includes Beach mode and is waterproof, making it suitable for beach and wet ground detecting.

Who is the Vanquish 560 Pro-Pack best suited to?
It is ideal for detectorists who want Multi-IQ performance, two coil options and simple controls in a complete ready-to-go package.
